Kodak digicam cables: every plug and cable code we have sourced

Kodak used 5 connector families on the compacts we checked. Find your camera in the table to see which cable codes the manuals name for it; where a maker states nothing, the row says so.

Sources checked 2026-10-18. 0 of 124 sourced Kodak cameras have a cable code named on their own row; 75 more are placed only by connector family and marked Partly confirmed. Status labels are explained in the guide.

Connector families

• Kodak U-8 USB cable / 8-pin USB-AV camera connector (EasyShare, 2005-2010)

  Confirmed

  Camera end: 8-pin proprietary USB/AV connector (Kodak manuals call it 'USB, 8-pin cable (Model U-8)' and 'USB / A/V connector'); exact plug shape not described in text

  Cable codes: U-8, U-8 (as 'KODAK USB Cable, Model U-8'), AV-8, U-8 (Z981 wording)

  Years: Appears in manuals from the EasyShare-One / P850 / V530 generation (c.2005) to Z981 (manual lists U-8, c.2010); manuals are undated

• Kodak Camera USB Cable, Micro B / 5-Pin (EasyShare, c.2010-2012)

  Confirmed

  Camera end: USB Micro-B (Kodak spec: 'Micro B / 5-Pin')

  Cable codes: KODAK Camera USB Cable, Micro B / 5-Pin

  Years: manuals for M530/M550/M575/C142 onward (undated); last: C1450/Z5120/MD55 era

• Kodak 'USB cable included with camera' (DX/CX/LS/early Z and C series, c.2000-2005; code and plug shape not stated)

  Partly confirmed

  Camera end: unknown - Kodak manuals do not name the plug type for these cameras (only 'labeled USB port on the camera')

  Cable codes: none stated

  Years: DX3500 (2000) to Z740/C340 (c.2004-2005)

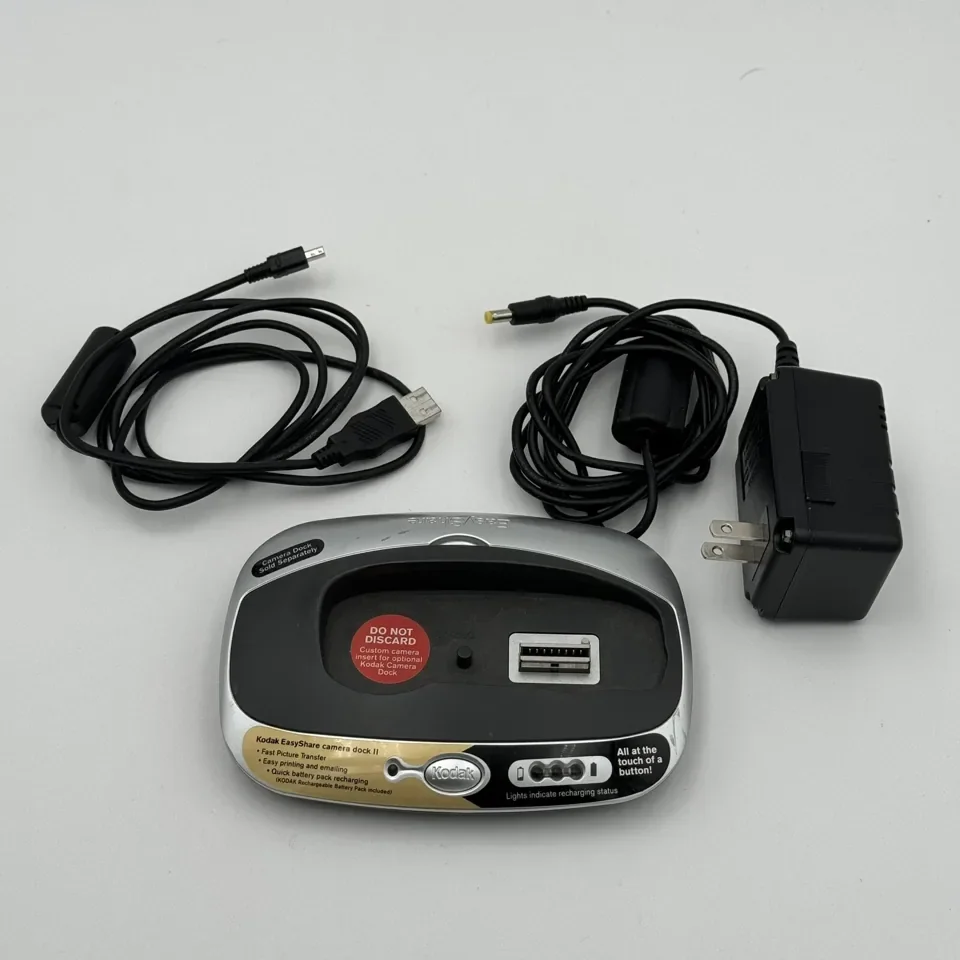

• Kodak EasyShare camera docks and printer docks (dock connector in camera base)

  Partly confirmed

  Camera end: proprietary multi-pin dock connector on the camera base with a tripod-socket locator pin (manuals: 'insert the locator pin into the camera tripod socket and push down to seat the connector'); inserts adapt it to each camera

  Cable codes: USB cable supplied with camera (U-8 on later cameras)

  Years: Camera Dock (DX3500/DX3215/DX3700, c.2000-2002) to Printer Dock Plus Series 3 / Photo Frame Dock 2 / HDTV dock (c.2005-2008)

• Kodak DC-series serial cable (DC20-DC210, DC240/DC280/DC265 serial+USB) - pre-EasyShare, 1996-2001

  Partly confirmed

  Camera end: DC120/DC240 use an 8-pin mini-DIN style serial socket per third-party pinout; DC280 kit has separate USB and serial cables

  Years: c.1996-2001
